CELLOPHANE PACKINE MACHINE

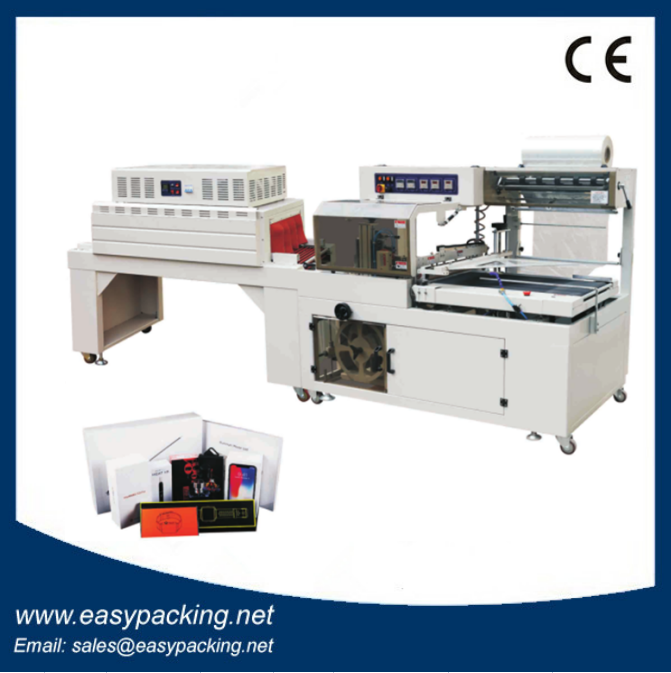

  • Manufacturer Supply L Type Automatic Film Overwrapping Packaging Machine / Cellophane Plastic Wrapping Machine
Manufacturer Supply L Type Automatic Film Overwrapping Packaging Machine / Cellophane Plastic Wrapping Machine

Manufacturer Supply L Type Automatic Film Overwrapping Packaging Machine / Cellophane Plastic Wrapping Machine

  • Function: PE Film Packaging Machine
  • Driven Type: Pneumatic
  • Dimension(L*W*H): L1650 * W700 * H1210 Mm
  • Packing speed: 18~25pcs/min
  • Product description: Manufacturer Supply L Type Automatic Film Overwrapping Packaging Machine / Cellophane Plastic Wrapping Machine
  • INQUIRY

Product Application

It is applied to a large scale shrink packing software. biscuit. pharmacy, Drinking, beer etc.
Temperature is controlled by capacity and strong power turbine heat-seal electrical machine.
It is applied to PVC.POF.PP. etc heat shrink film.

Model
FQL-450A
FQL-550A
Sealing type
L
L
Power supply
220V 50/60Hz
220V 50/60Hz
Max Packing capacity
35pcs/min
35pcs/min
Max Sealing Length
560mm
560mm
Max Sealing height
150mm
150mm
Packing width
350mm
450mm
Product size
width+height≤380mm
width+height≤380mm
Power
1.55KW
1.75KW
Film type
POF
POF
Max film size
500*260mm
600*260mm
Working height
780-850mm
780-850mm
Air pressure
0.6-0.8Mpa
0.6-0.8Mpa
Dimension
1650*880*1450mm(L*W*H)
1850*980*1450mm(L*W*H)
Weight
300kg
350kg
Model
BS-4522N
BS-5530N
Power supply
380V 50/60Hz
380V 50/60Hz
Oven size
1200*450*220MM(L*W*H)
1500*550*300MM(L*W*H)
Conveyor speed
0-10m/mim
0-10m/mim
Power consumption
10Kw
12Kw
Dimension
1600*720*1300mm(L*W*H)
1900*800*1380mm(L*W*H)
Weight
130kg
150kg
