Application of Playing Cards Box Cellophane Film Wrapping Machine

Application: Pill boxes, chewing gum, health products, tea, sugar cubes, tapes, VCD (CD) discs, playing cards, transparent soap, square batteries and so on.

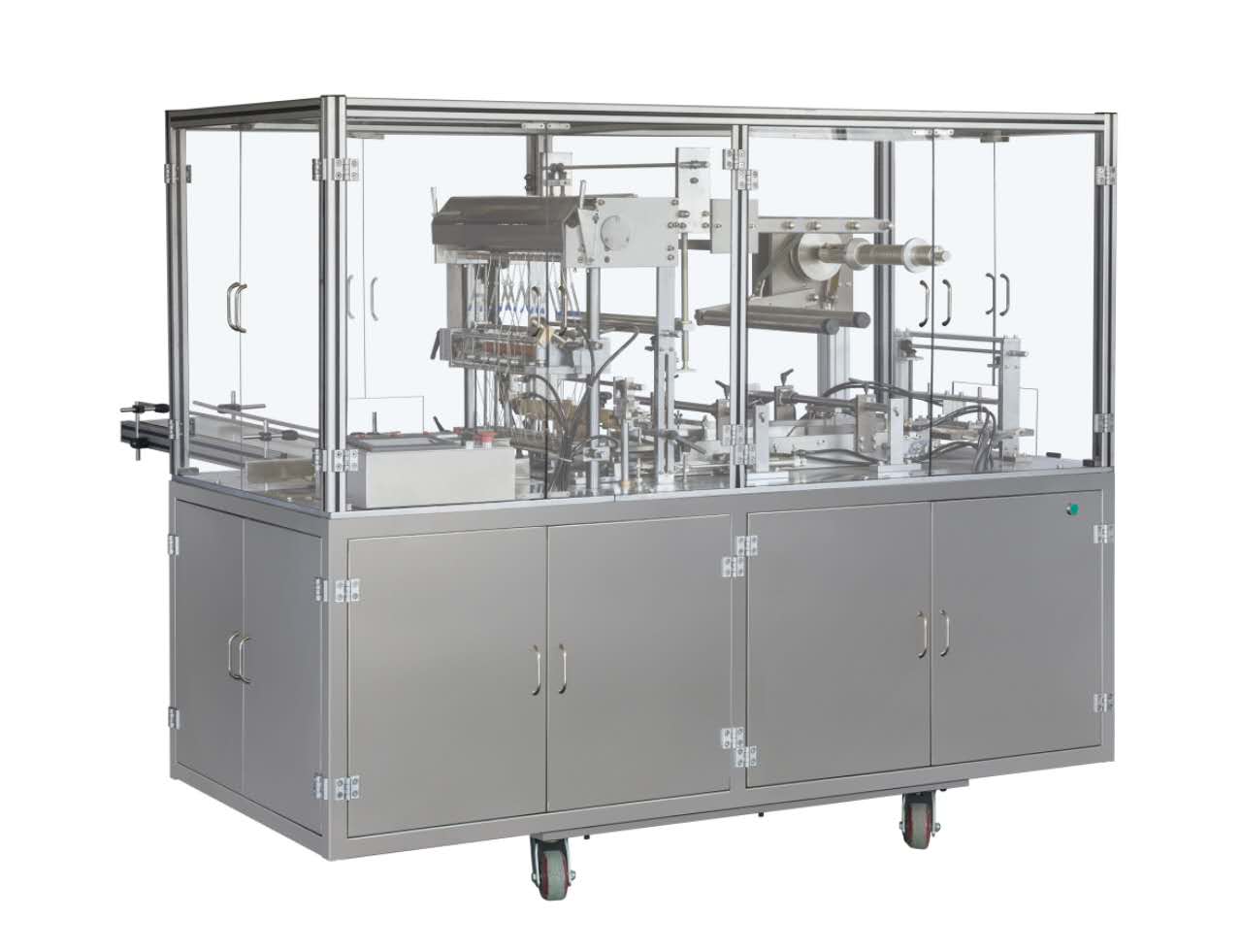

Machine display

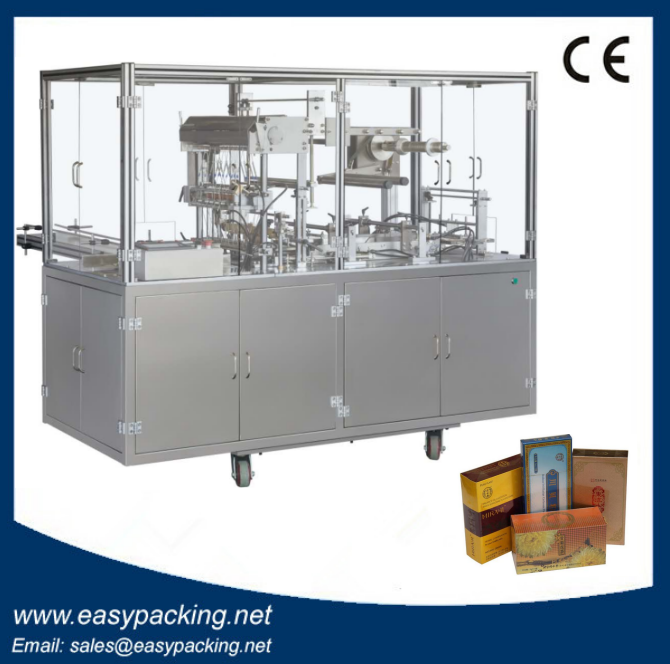

Machine display

Main Features

1) Compact and reasonable structure, stable and advanced performance, simple and convenient operation and maintenance. 2) Multifunctional digital display inverter, stepless variable speed. 3) With automatic feeding, automatic counting and other functions. 4) The transmission part is equipped with various protective devices and fault tips. 5) No waste of packing material for film delivery clutch of test machine.

specification
Package size	L(50~250)X W(20~120)XH(10~60) mm
Packing speed	30-120 bpm
Temperature range	0-300(℃)
Packing material	gold thread BOPP hot sealing film
Voltage	AC 220/50 110/60
Power	4.5KW
Outline dimension	2000*700*1500mm
Weight	600KG

Machine Workflow

Machine Workflow
